主钳适应范围(Pipe  Size  Range  Of  Master  Tong): φ140-34051/2“-133/8”

背钳适应范围(Pipe Size Range Of Backup Tong): φ140-36551/2“-143/8”

额定高档扭矩(High Gear Rated Torque):

4800N.m     3540ft.lbs

额定低档扭矩(Low  Gear  Rated  Torque):

35000N.m     25810ft.lbs

额定高档转速(High Gear Rated Speed):

42r/min

额定低档转速(Low Gear Rated Speed):

6r/min

额定系统压力(Rated  Operation  Pressure):

16Mpa    2320psi

最大供油量(Max.Flow):

120L/min     32gpm

外形尺寸(Dimension  L×W×H):

主钳(Master)

1490×1055×850mm      58.7”×41.4”×33.3”

组合钳(Master  with   Backup)

1490×1055×1840mm   58.7”×41.4”×72.4” 重量(Weight):

主钳(Master)670Kg        1480lbs

组合钳(Master    with    Backup)1020Kg    2244lbs

00:0102:18

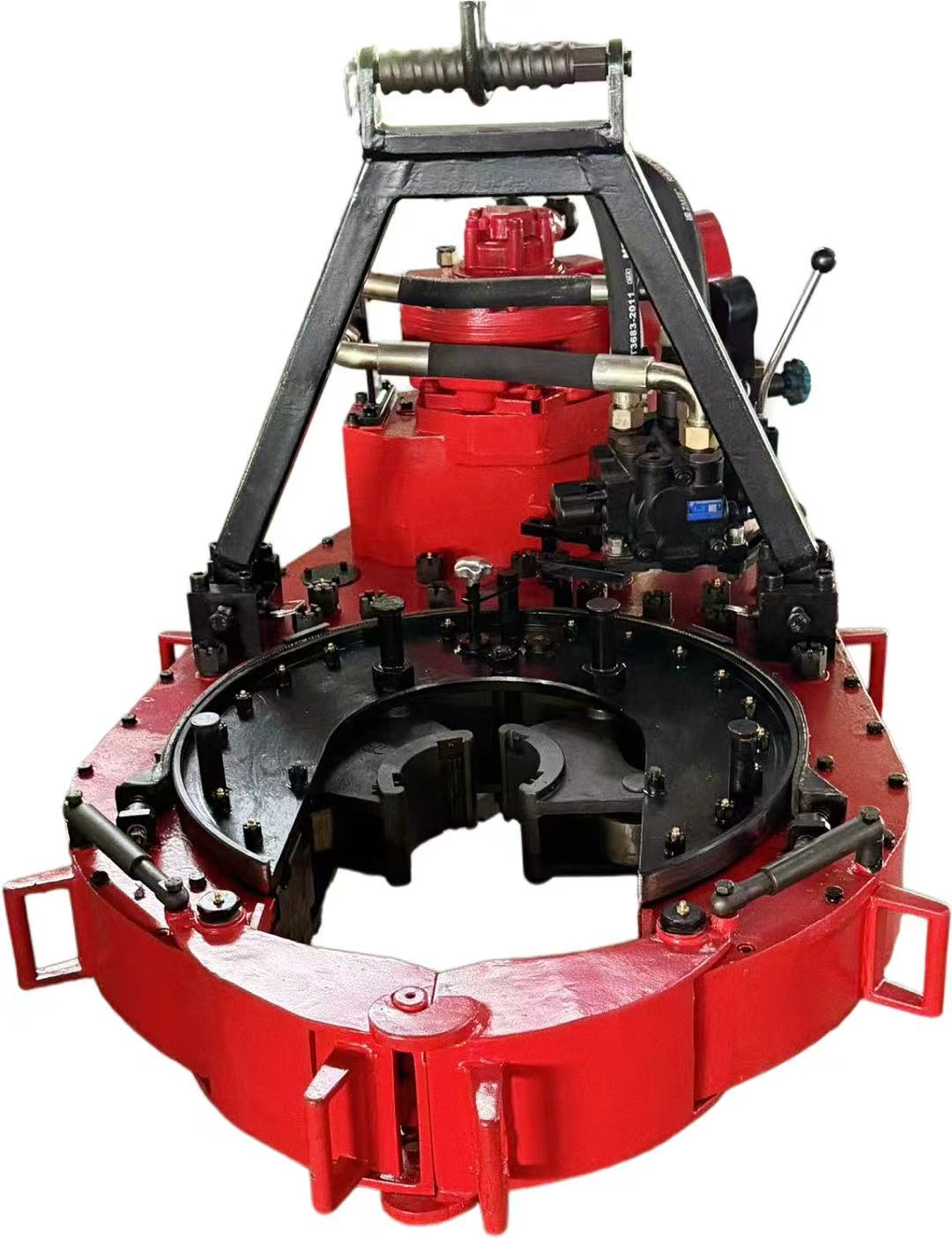

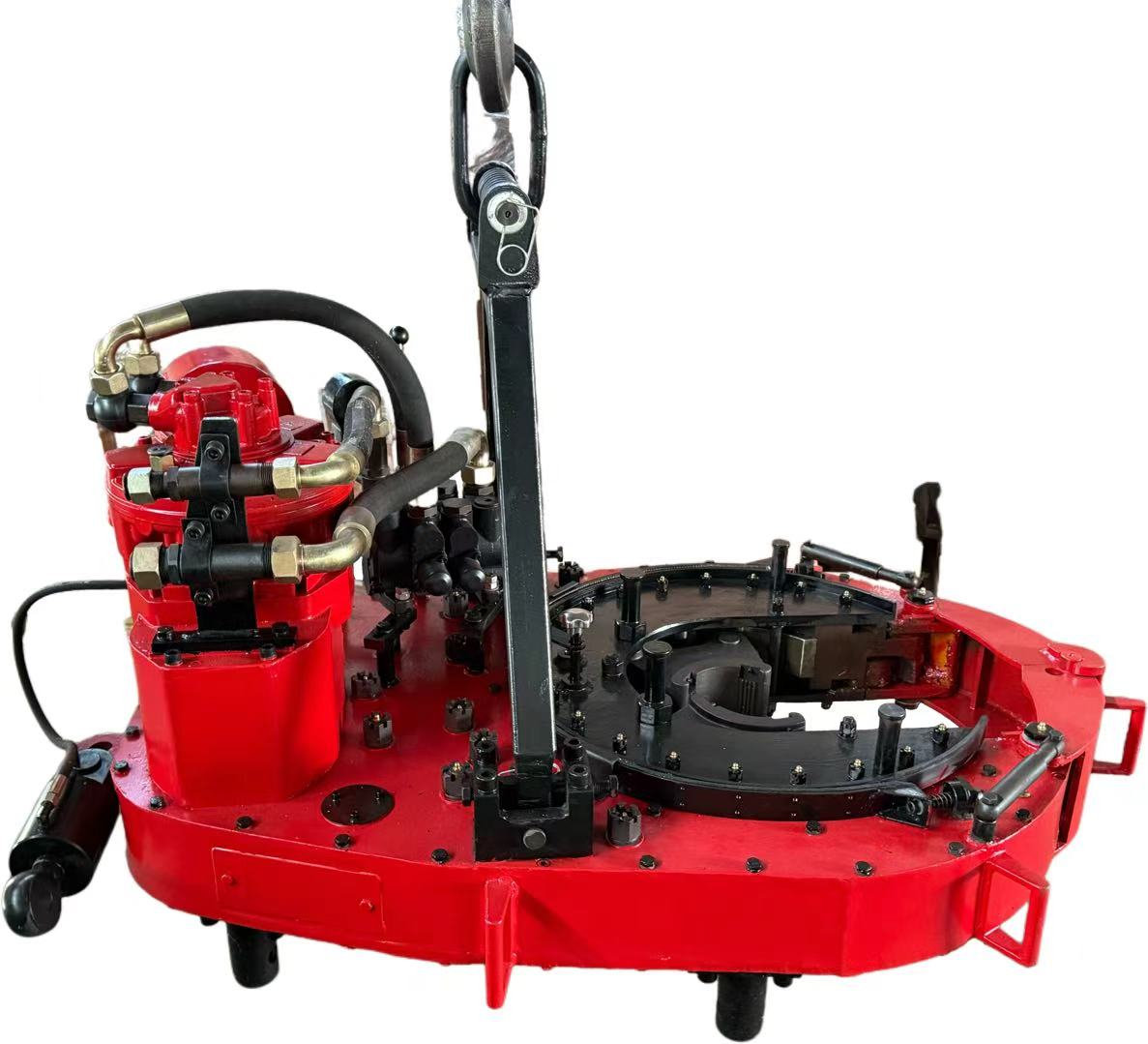

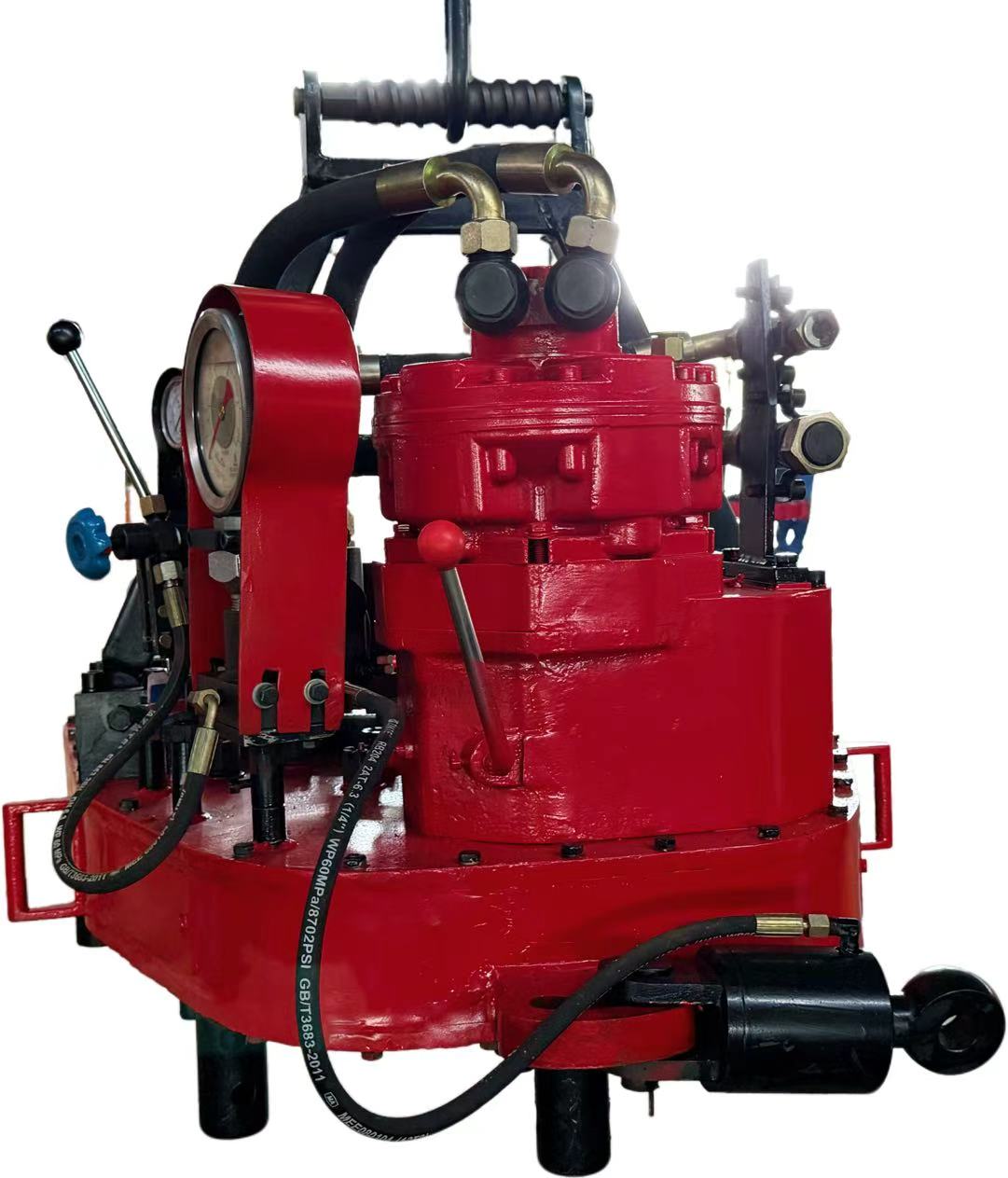

Product Description

1.Open type,double swing-headed jaws,convenient to assemble and disassemble;

2.Brake belt assembly,open gear supporting structure,improving the strength and rigidity;

3.Wholly hydraulic mode and mechanical gear shift;

4.With torque gauge,optional torque control system to display,control and record the make-up torque.
