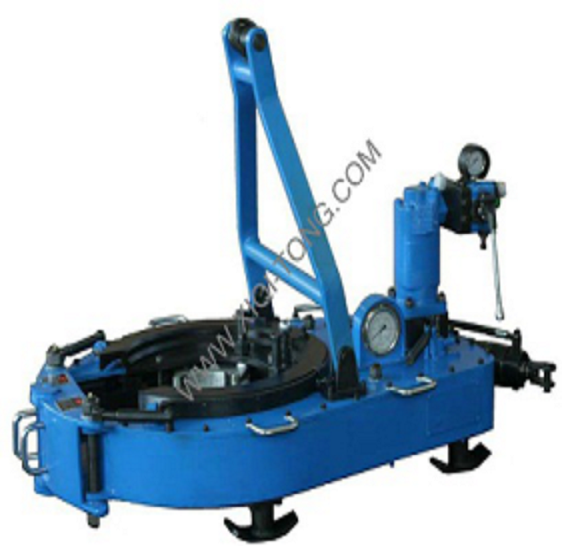

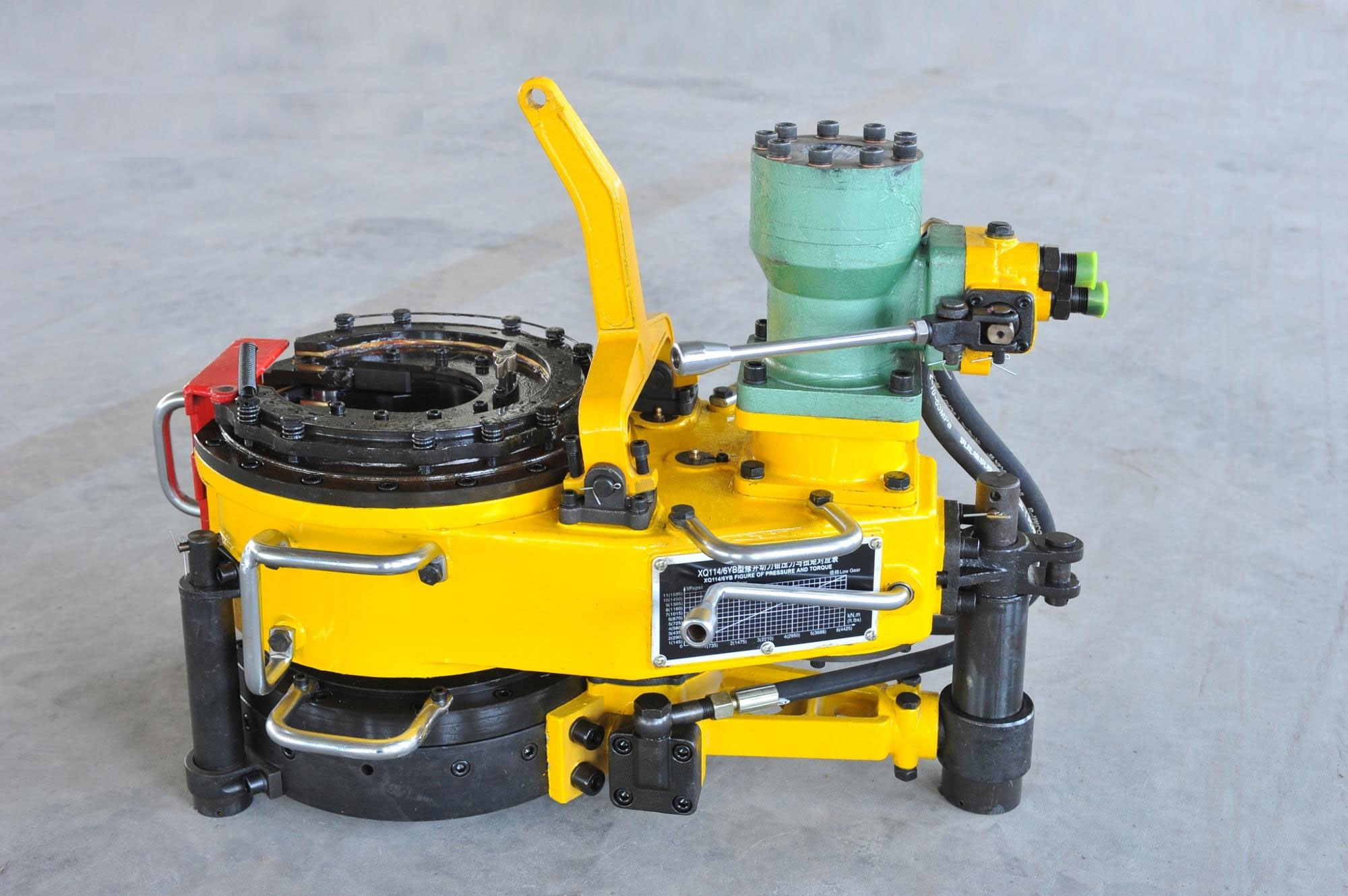

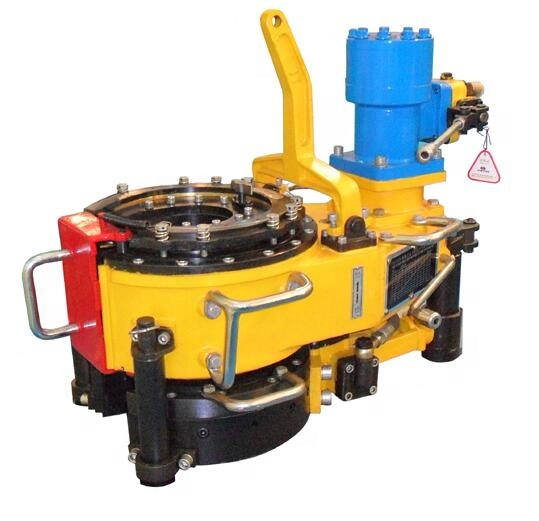

Product Description
1.Compact,light and efficient.
2.The master tong -a high and low gear train.
3.Independent of the each other-The master tong and backup hydraulics operate
4.A new system of the disc brake.
5.Work over is made easy.
6.The backup has been supplied-coupling hoses,connections.
Model | XQ140-12X/12YA | XQ140/20X |
Pipe Size Range of Master Tong | φ73~140 27/8"~51/2" | φ60~140 23/8"~51/2" |
Pipe Size Range of Backup Tong | φ73~156 27/8"~61/8" φ89~156 31/2"~61/8" | φ60~156 23/8"~61/8" |
High Gear Rated Torque | 2600N.m 1918ft-lbs | 2300N.m 1696ft-lbs |
Low Gear Rated Torque | 12000N.m 8851ft-lbs | 20000N.m 14751ft-ibs |
High Gear Rated Speed | 72r/min | 76r/min |
Low Gear Rated Speed | 14r/min | 8.7r/min |
Rated Operation Pressure | 12Mpa 1740psi | 13Mpa 1885psi |
Max.Flow | 120L/min 32gpm | 120L/min 32gpm |
Dimension:(LxWxH) | 1050x620x900 41.3x24.4x35.4 1024x582x539 40.3x22.9x21.2 | 1130x610x860 44.5x24x33.9 |
Weight(Including Backup Tong) | 446kg 983lbs <480kg 1057lbs> | 560kg 1235lbs |
