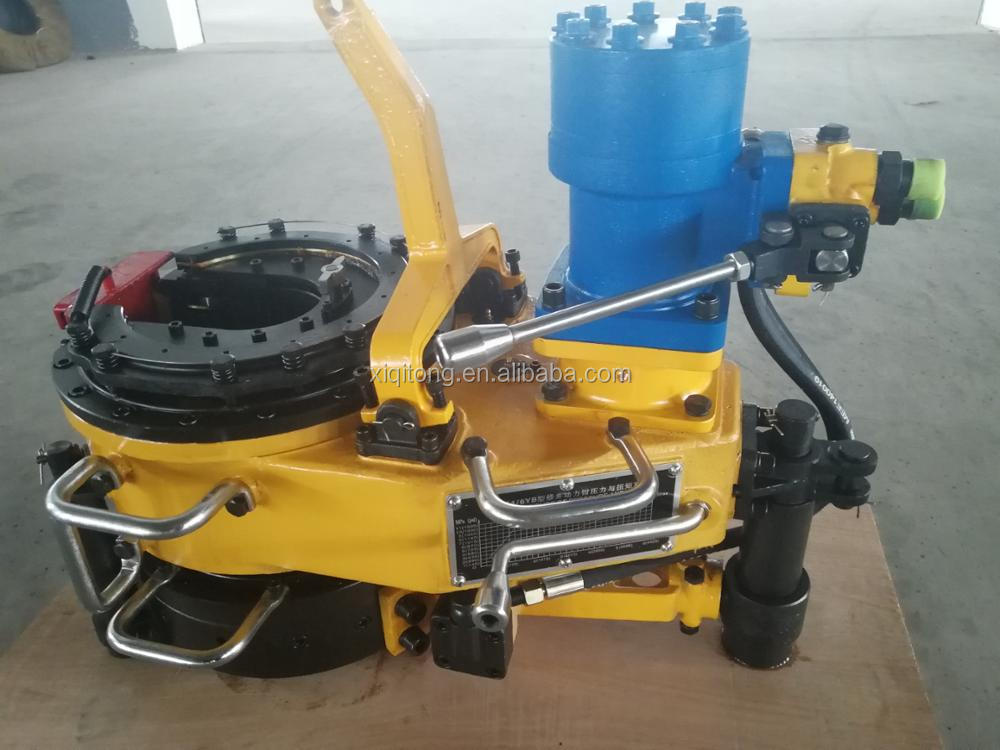

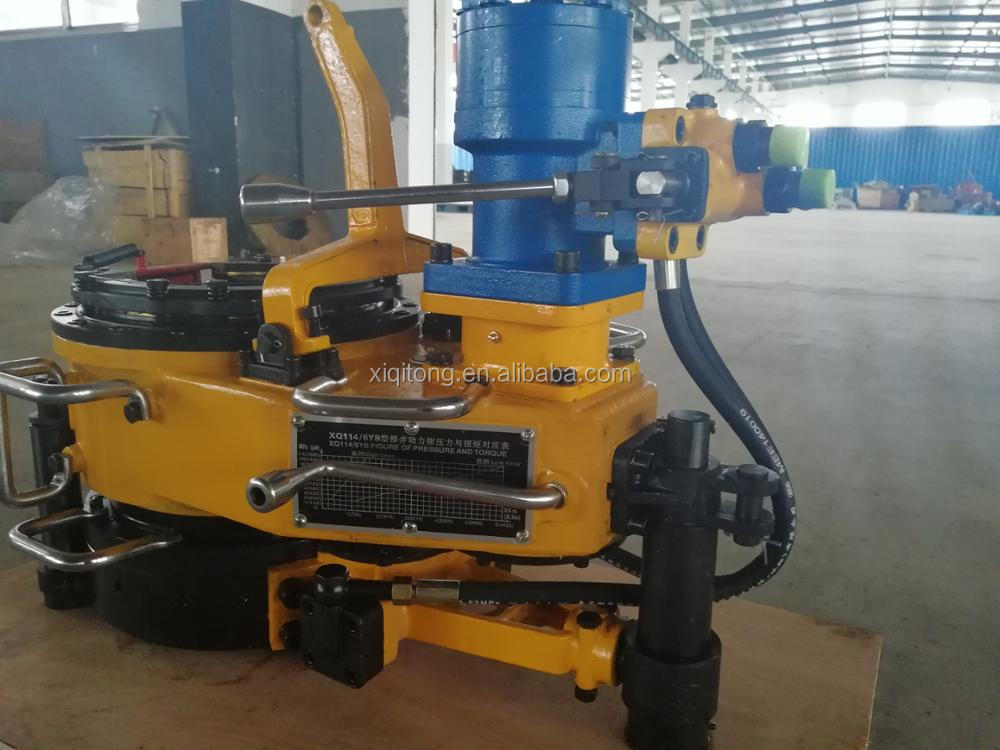

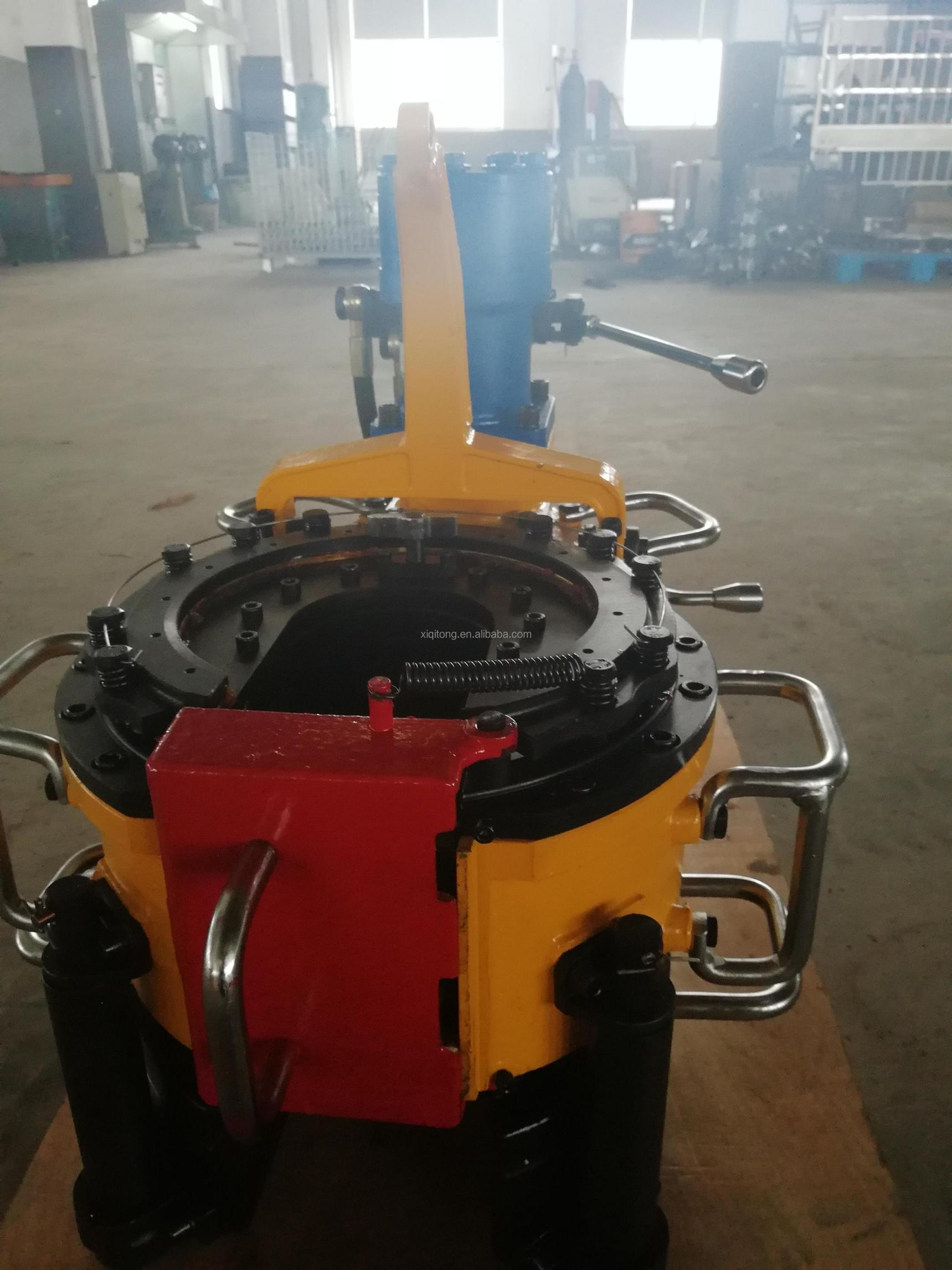

Type XQ140/12A well repair power pliers are an open power pliers used to quickly unload threads in oilfield repair operations. It can be applied to tubings, small drill pipes and small sleeves in the range of Ф73-140mm (2 7/8′′-5 1/2′′). Land oil fields and offshore oil fields can be used. The use of this product can reduce the labor intensity of well repair workers, improve work efficiency and well repair quality.

Product model
Price

product details

Product Overview

Model

XQ89/3B/3C/3F

XQ114/6B

XQ140/12YA

Range of Master Tong

φ60-89

2 3/8"-3 1/2"

φ73-114

2 7/8"-4 1/2"

φ73-140

2 7/8"-5 1/2"

Range of Backup Tong

φ60-114

2 3/8"-4 1/2"

φ73-141.5

2 7/8"-5 9/16"

φ73-156

2 7/8"-6 1/8"

High Gear Rated of Torque

1100N.m

810ft lbs

1500N.m

1106ft lbs

2600N.m

1918ft lbs

Low Gear Rated of Torque

3000N.m

2210ft Ibs

6000N.m

4425 ft.lbs

12000N.M

8815 ft.lbs

High Gear Rated of Speed

100RPM

85 RPM

72r/min

Low Gear Rated of Speed

30RPM

20 RPM

14r/min

Low Gear Rated of Speed

10Mpa

1450Psi

11Mpa

1600Psi

12Mpa

1740Psi

Rated Flow

80LPM

21GPM

100 LPM

26 GPM

120LPM

32 GPM

Dimension: L*W*H

650*430*550

25.6"*16.9"*21.7"

900*515*710

35.4"*20.3"*28"

1060*618*850

40.3"*22.9"*21.2"

Weight

158kg

350lbs

304kg

670lbs

520kg

1144 lbs

XQ140/12A

Our business scope includes wellheads, wellhead equipment, and well control equipment. Our product has API7 ISO customer certificate and certification.
