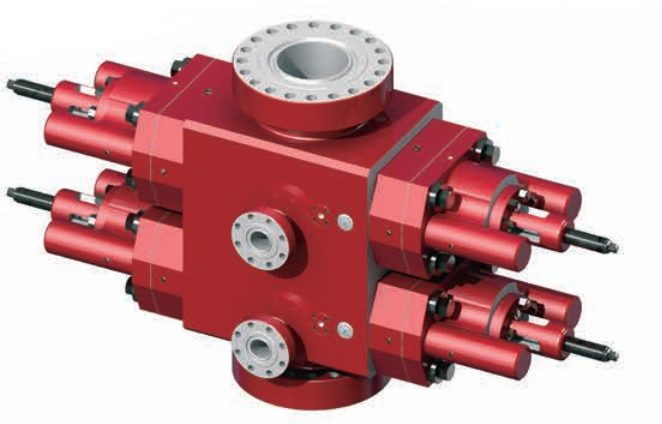

Ram BOP
The Ram BOP has U type, UM type, Mini U type and s type.
The design and manufacturing of Ram BOP meets the requirement of APl 16A and GB/T20174. The RamBOP is equipped with Ram of various kinds of size and specification.
Working Pressure: 2.000Psi~20.000Psi
Nominal Bore Diameter: 7 1/16"-30"
Working Medium: petroleum, natural gas, mud, gas containing H2S, CO2
Temperature Ratings for metalic materials: T75、T20、10
Temperature Ratings for non-metallic sealing materials:A-D(-26℃~121℃)
Rated Working Pressure of Hydraulic Control: 3000Psi;
Recommended Working Pressure:1200Psi-1500Psi
Upper and Lower Connections: flanged, $tudded or Clamped Upper and Lower
Locking Method: Hydraulic or Manual Locking
Specification of Hydraulic il Way: 1"NPT
Matched Rams: Pipe Ram,Blind Ram,Shear RamSide Outlet Connection: Fanged, Studded or Clampe
| U型变径闸板变径范围Variable diameter range of U-shaped variable diameter gate | |||
| 防喷器分类 Classification | 防喷器型号规格 Model and specification | 变径闸板变径范围 Variable diameter range of variable diameter gate | |
| U Type | （2）FZ 28-35 | 2 7/8"-5" | |
| （2）FZ 28-70 | 2 7/8"-5" | ||
| （2）FZ 35-35 | 2 3/8*-3 1/2" | 2 7/8"-5" | |
| （2）FZ 35-70 | 2 3/8*-3 1/2" | 2 7/8"-5" | |
| （2）FZ 35-105 | 31/2*-5" | 4 1/2*-5 1/2" | |
| （2）FZ 54-35 | 2 7/8*-5 7/8" | ||
